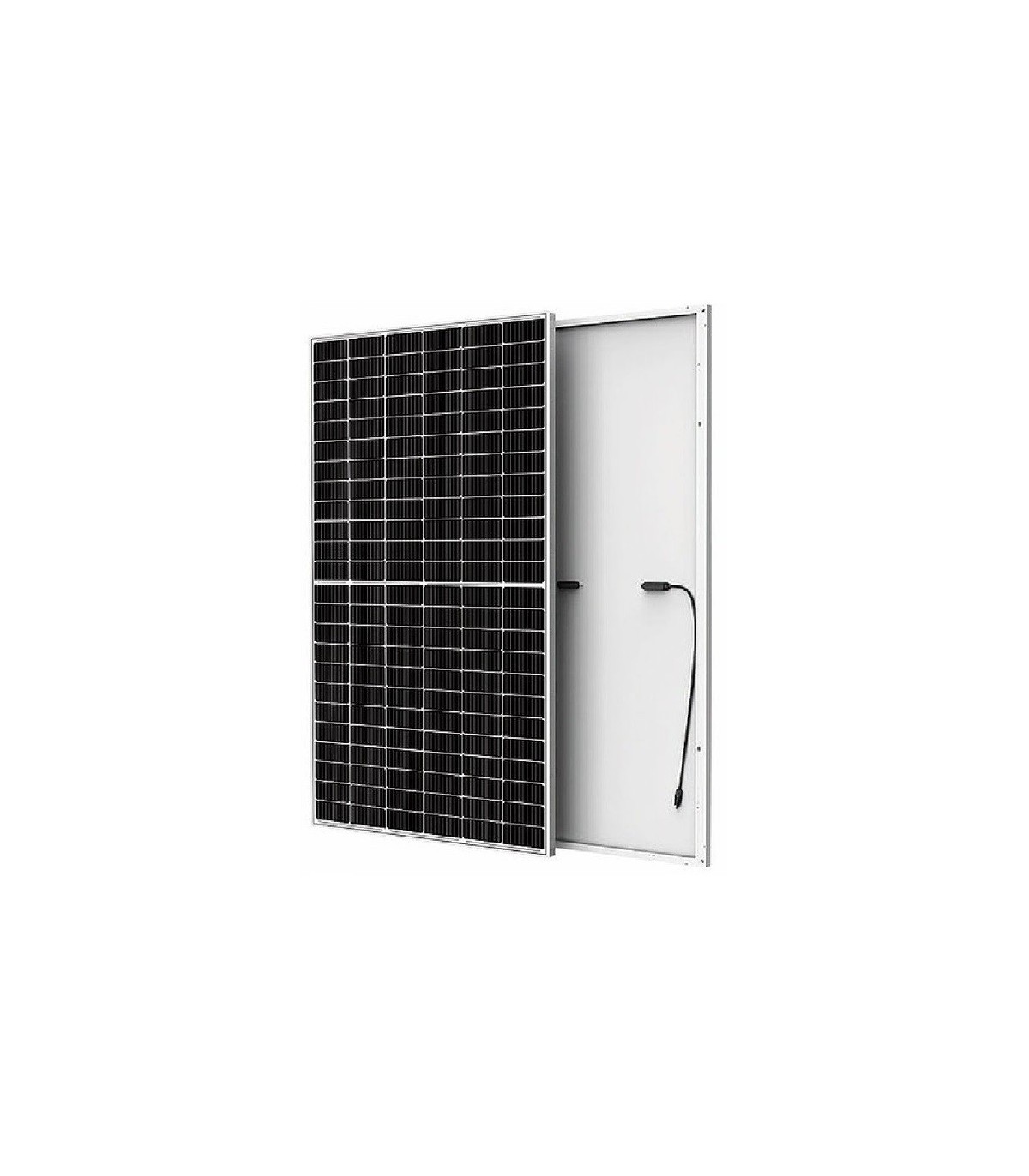

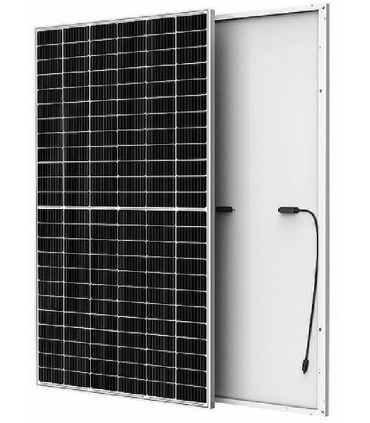

Panel fotovoltaico Dah 450 Watt Perc, Mono Half Cell

  • Placa Fotovoltaica Monocristalina.
  • Potencia Nominal: 450 W.
  • Voltaje de Trabajo: 41.8 V.
Lee mas
Oferta por tiempo limitado:
$ 182.000 (IVA incl.) $ 199.000
-$ 17.000
Favorito0
Descripción

Maximum Power (Pmax) 450W

Open Circuit Voltage (VOC) 50.2V

Short Circuit Current (ISC) 11.28A

Voltage at Maximum Power (Vmp) 41.8V

Current at Maximum Power (Imp) 10.77A

Module Efficiency (%) 20.58

Operating Temperature -40°C to +85°C

Maximum System Voltage 1000V DC/1500V DC

Fire Resistance Rating Type 1(in accordance with UL1703)

Class C(IEC61730)

Maximum Series Fuse Rating 20A

Cell type Monocrystalline PERC 166*83mm

Number of cells 144 (6x24)

Module dimensions 2102x1040x35mm (82.76x40.94x1.38inches)

Weight 24kg (52.9lbs)

Front cover 3.2mm (0.13inches) tempered glass with AR coating

Frame Anodized aluminum alloy

Junction box IP68, 3 diodes Cable 4mm2 (0.006inches2 ), Length: Portrait: 300mm (11.81inches); Landscape: 1400mm (55.12inches)

Connector MC4 or MC4 compatible

Nominal Operating Cell Temperature (NOCT) 43°C±2°C

Temperature Coefficients of Pmax -0.36%/°C

Temperature Coefficients of VOC -0.28%/°C

Temperature Coefficients of ISC 0.05%/°C
